Pattern 19 / RESILIENCE

Circuit Breaker

Use this when stopping a failing dependency from exhausting callers.

Pressure: Stopping a failing dependency from exhausting callers
Mechanism: Track failures, open the circuit after a threshold, return fallback, then probe for recovery
Toll: Fallbacks may be degraded and thresholds must fit real failure modes

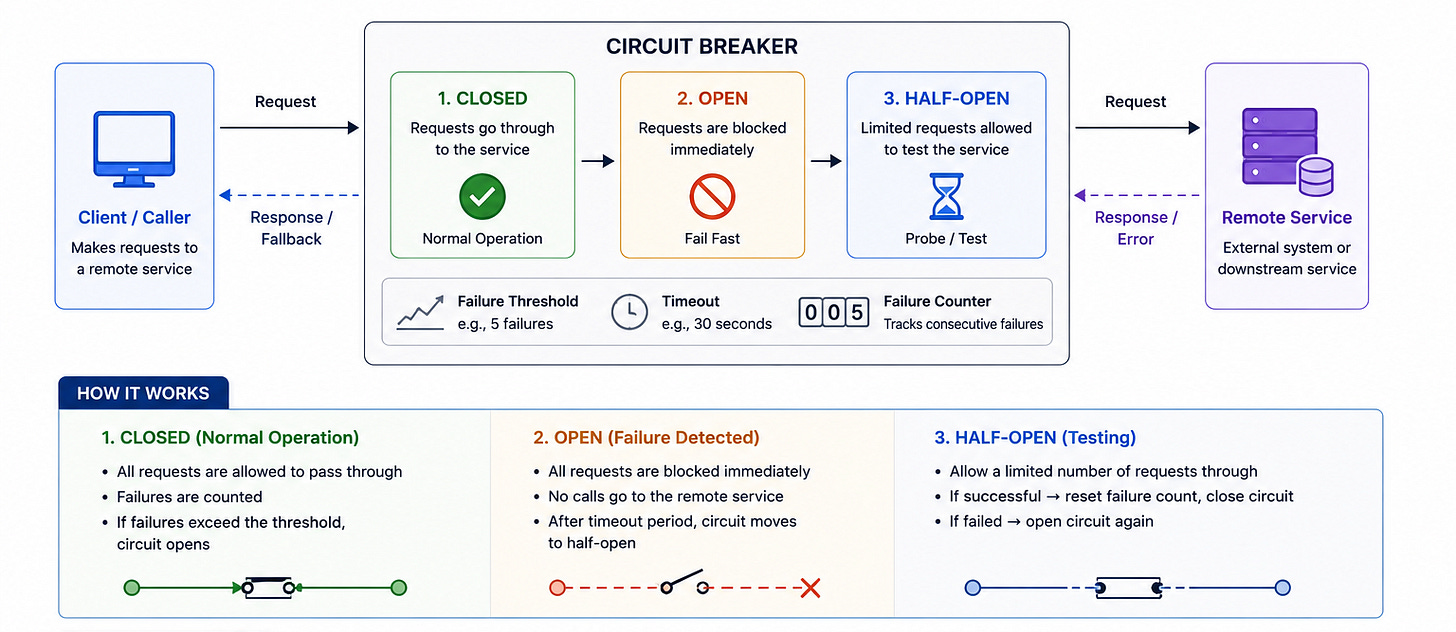

Diagram for Circuit Breaker — Architecture plate19

Executive brief

Circuit Breaker fits when stopping a failing dependency from exhausting callers. Mechanism: track failures, open the circuit after a threshold, return fallback, then probe for recovery. Use it for any service call to a dependency whose failure should be isolated. The toll: fallbacks may be degraded and thresholds must fit real failure modes.

Use when

Any service call to a dependency whose failure should be isolated.

Example

Recommendation service down → show trending products.

Review framing

Describe the pressure first, then the mechanism, then the cost. That keeps the design grounded.
