Pattern 08 / CACHE

Write-Through

Use this when keeping cache and storage fresh immediately after writes.

Pressure: Keeping cache and storage fresh immediately after writes
Mechanism: Write to cache and database in the same write path so later reads hit updated cache data
Toll: Writes are slower and unused values may occupy cache

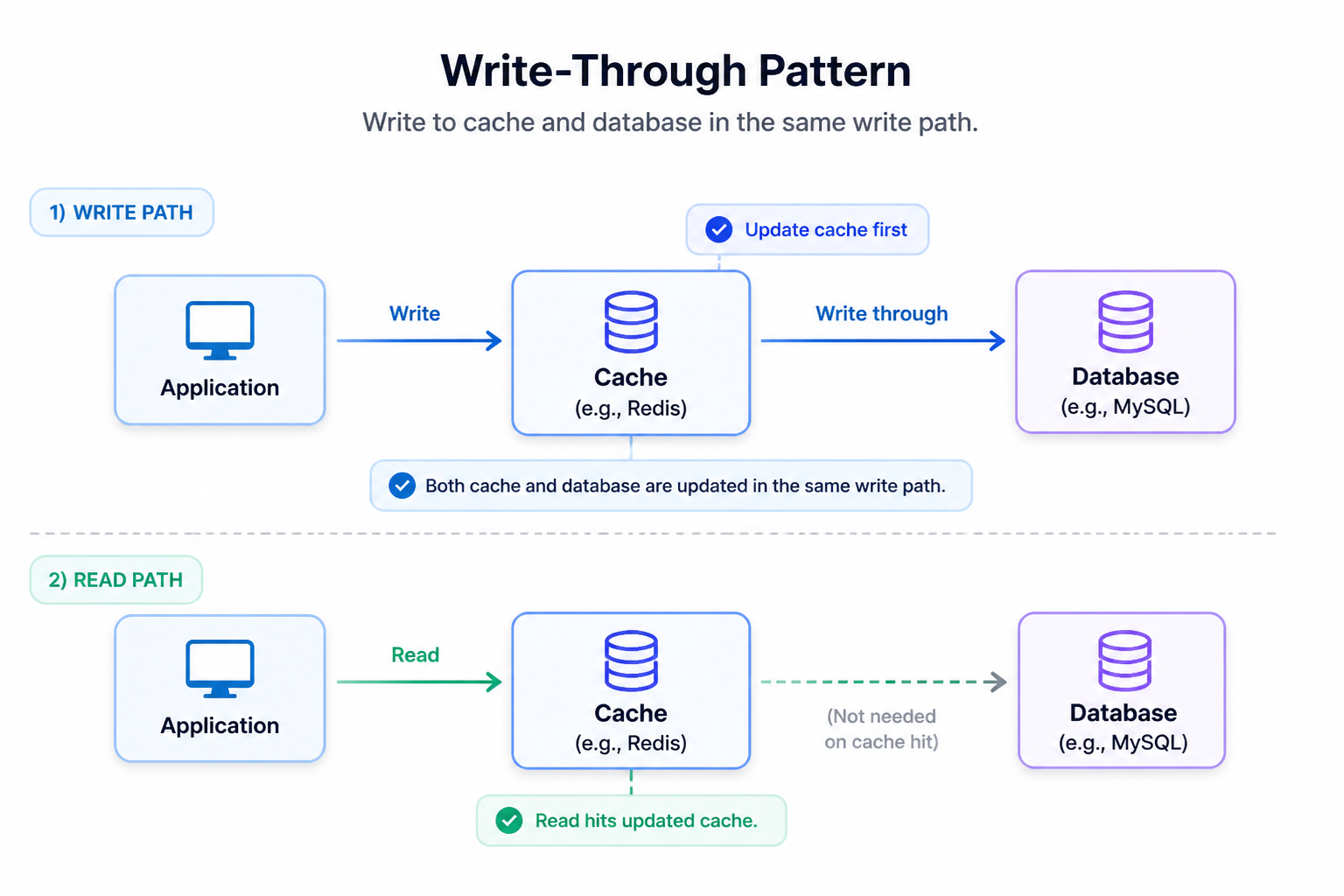

Diagram for Write-Through — Architecture plate08

Executive brief

Write-Through fits when keeping cache and storage fresh immediately after writes. Mechanism: write to cache and database in the same write path so later reads hit updated cache data. Use it for profile updates, settings, permissions, and read-after-write sensitive screens. The toll: writes are slower and unused values may occupy cache.

Use when

Profile updates, settings, permissions, and read-after-write sensitive screens.

Example

Saving account preferences to both redis and postgresql.

Review framing

Describe the pressure first, then the mechanism, then the cost. That keeps the design grounded.
